CCT Dimmer

CCT Dimmer(2M3P) works with ESP32-DevKitC. You can use it to control 2 bi-color lights at same time.

  • Power: Total 150W

  • Input: DC 24V;

  • Output: Dimmable 24V

  • WIFI: 802.n

  • Output Terminal: G16-3 aviation connector

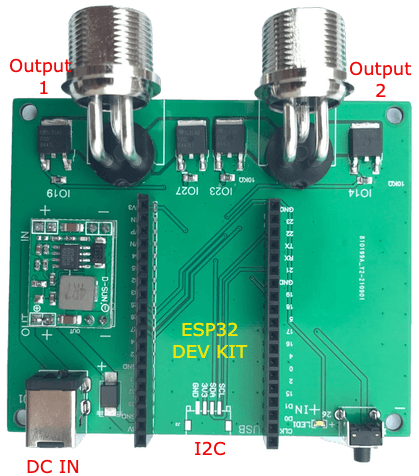

../_images/2m3p.png

Homespan code sample

Control and Status GPIO

homeSpan.setControlPin(17); // sets control button
homeSpan.setStatusPin(26); // sets LED Pin

Two CCT light GPIO

new SpanAccessory();
  new DEV_Identify("CCT1","abap.sale","as better as Possible","50W CCT LED","0.9",0);
  new DEV_CCTLED(23,14);

new SpanAccessory();
  new DEV_Identify("CCT2","abap.sale","as better as Possible","50W CCT LED","0.9",0);
  new DEV_CCTLED(19,27);
