RGB Controler

RGB controler works with ESP32-DevKitC. You can use it to control 1 RGB lights.

  • Power: Total 150W

  • Input: DC 24V;

  • Output: Dimmable 24V

  • WIFI: 802.n

  • Output Terminal: G16-4 aviation connector

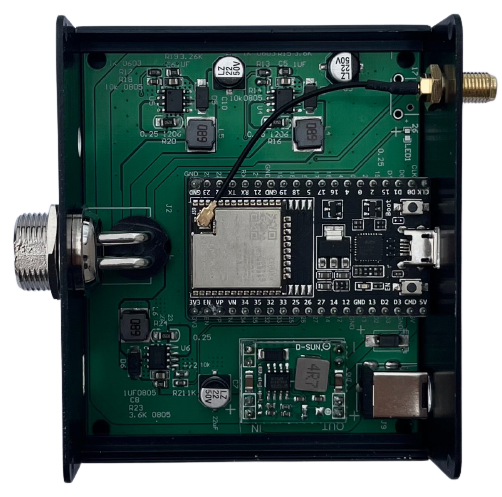

../_images/rgbcontrol.png

Homespan code sample

Setup control and status GPIO

homeSpan.setControlPin(17); // sets control button
homeSpan.setStatusPin(26); // sets LED Pin

Setup RGB light GPIO:

new SpanAccessory();
  new DEV_Identify("CCT2","abap.sale","as better as Possible","50W CCT LED","0.9",0);
  new DEV_RgbLED(23,19,27);
