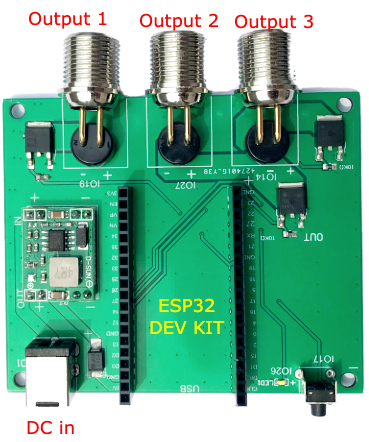

PWM Dimmer

PWM Dimmer(3M2P) works with ESP32-DevKitC board. You can use it to control at most 3 lights at same time.

  • Power: Total 150W

  • Input: DC 24V;

  • Output: Dimmable 24V

  • WIFI: 802.n

  • Output Terminal: G12-2 aviation connector

../_images/3m2p.png

Homespan code sample

Setup control and status GPIO

homeSpan.setControlPin(17); // sets control button
homeSpan.setStatusPin(26); // sets LED Pin

Setup three monochromatic lights GPIO

new DEV_DimmableLED(17)
new DEV_DimmableLED(23)
new DEV_DimmableLED(25)
